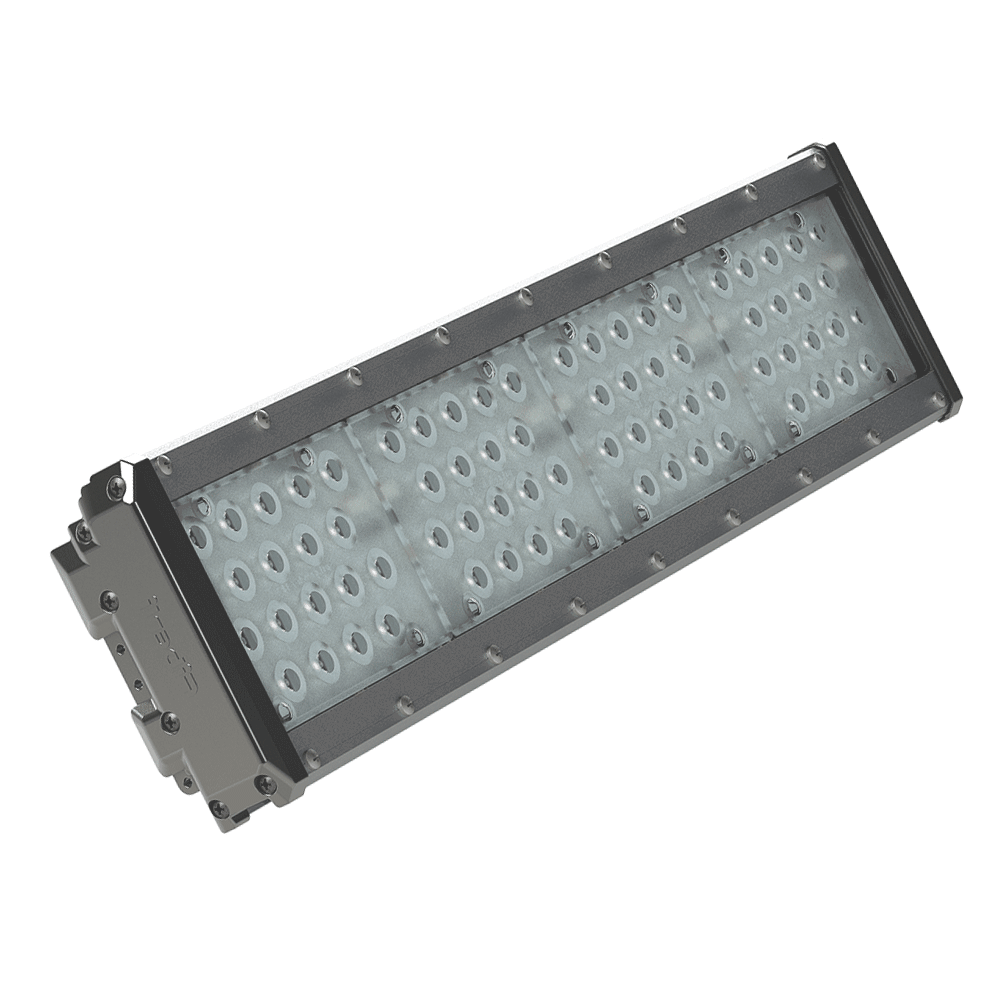

Led Projektors / WS RDMX

  • P
  • W
  • O
  • J
  • M

  • P

    PRODUCT & POWER OPTIONS

    Product Name Light Color Input Voltage (V) Power (W) Length (L) Product Weight (kg)
    WS236-RDMX RGB 220-240V AC 45 320 2,9
    WS354-RDMX RGB 220-240V AC 67 477 4,3
    WS472-RDMX RGBW/A 220-240V AC 89 609 5,3
    WS232-RDMX RGBW/A 220-240V AC 59 320 2,9
    WS348-RDMX RGBW/A 220-240V AC 88 477 4,3
    WS464-RDMX RGBW/A 220-240V AC 117 609 5,3

    ELECTROMECHANICAL SPECIFICATIONS

    • Anodized aluminum extruded profile
    • Electrostatic powder coated, aluminum injection end cap
    • Stainless chrome fixture stand
    • Polycarbonate luminaire glass
    • PVC side covers with invisible gland outlet and UV protection.
    • High efficiency group lens.
    • IP68 air vent.
    • RDMX configuration
    • IP67 socket fot DATA-SIGNAlS

  • O

    LENS OPTIONS

    • N: Narrow Angle
    • M: Medium Angle
    • W: Wide Angle
  • J

    CONNECTION OPTIONS

    • 01: Cable
    • 02: IP Socket
  • M

    MOUNTING OPTIONS

    • 20: Standard Stand
    • 21: Standard stand/ Mounting kit
    Optional Accessories
    • 34: Extension piece A=5cm 35: Extension piece A=10cm 36: Extension piece A=20cm Extension pieces at any desired length are optional

  • ADDITIONAL PIECE OPTIONS

    • Dual Assembly
    • Triple Assembly
    • Quarted Assembly

    • Standard Connection Scheme

    • Connection Scheme with Extension Socket

    • (1) DMX DATA CABLE, 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
    • (2) AC SUPPLY CABLE, 3x1mm TTR
    • (3) 26000xxx : SOCKET RDMX L:100/200/400/600/800/1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
    • (4) 33600755: RDMX INPUT JOINT
    • (5) 33600696: RDMX TERMINATOR

  • ACCESSORIES

    • 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
      26000122 : SOCKET RDMX L:100cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
      26000150 : SOCKET RDMX L:200cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
      26000151 : SOCKET RDMX L:400cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
      26000152 : SOCKET RDMX L:600cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
      26000153 : SOCKET RDMX L:800cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
      26000154 : SOCKET RDMX L:1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION

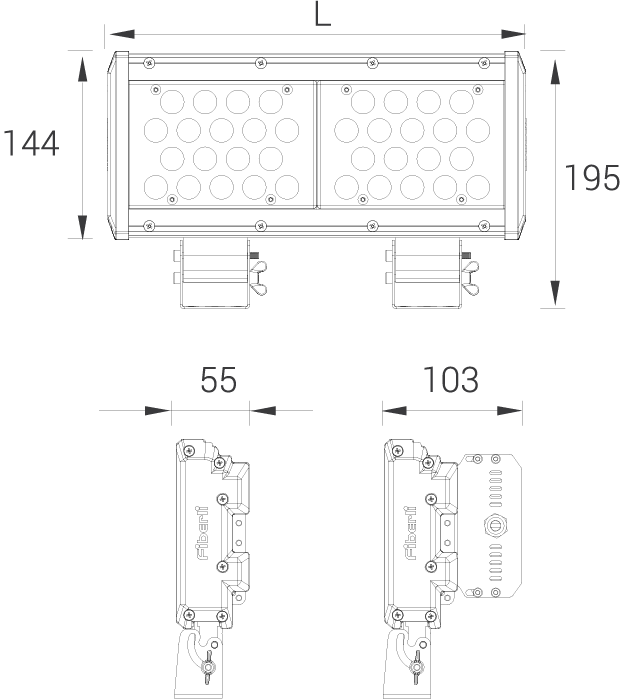

  •  PRODUCT DIAGRAMS
    WS RDMX WS RDMX
  • a6.svg
  • a19.svg
  • a11.svg
  • c25.svg
  • c26.svg
  • c4.svg
  • c5.svg
  • c14.svg
  • b27.svg
  • b28.svg
  • b29.svg
