| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WLMT124 | WW-NW-CW | 220-240V AC | 16 | 1.848 | 320 | 0,6 |
| WLMT248 | WW-NW-CW | 220-240V AC | 28 | 1.848 | 600 | 0,9 |
| WLMT372 | WW-NW-CW | 220-240V AC | 36 | 2.667 | 890 | 1,4 |
| WLMT496 | WW-NW-CW | 220-240V AC | 48 | 3.531 | 1180 | 1,7 |
| WLMT109-DMX | RGB | 220-240V AC | 8 | - | 320 | 0,6 |
| WLMT218-DMX | RGB | 220-240V AC | 16 | - | 600 | 0,9 |
| WLMT327-DMX | RGB | 220-240V AC | 24 | - | 890 | 1,4 |
| WLMT436-DMX | RGB | 220-240V AC | 32 | - | 1180 | 1,7 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.

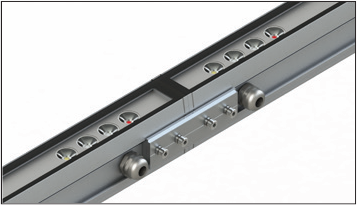

• Continuous light output with end-to-end connection
• Anodized aluminum extruded profile
• Anodized aluminum extrusion luminaire bracket
• Tempered luminaire glass
• IP68 air vent
• High-efficiency group lens option

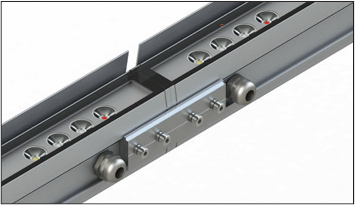

• Shield option
• One-piece connection capability
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
|
RGB | A:Amber | 590nm |
XN: Extra Narrow
N: Narrow Elliptical
M: Medium Elliptical
W: Wide Elliptical Angle
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |
|
||||||
| RGBA/W |
|
||||||
| RGB DMX |
|
||||||
| WHITE DMX |
|
||||||
