    PRODUCT & POWER OPTIONS

    Product Name Light Color Input Voltage (V) Power (W) Luminous Flux (lm) Product Weight (kg)
    SUPREME-I WW-NW-CW 220-240V AC 440 58.655 17,2
    SUPREME-II WW-NW-CW 220-240V AC 880 114.400 33

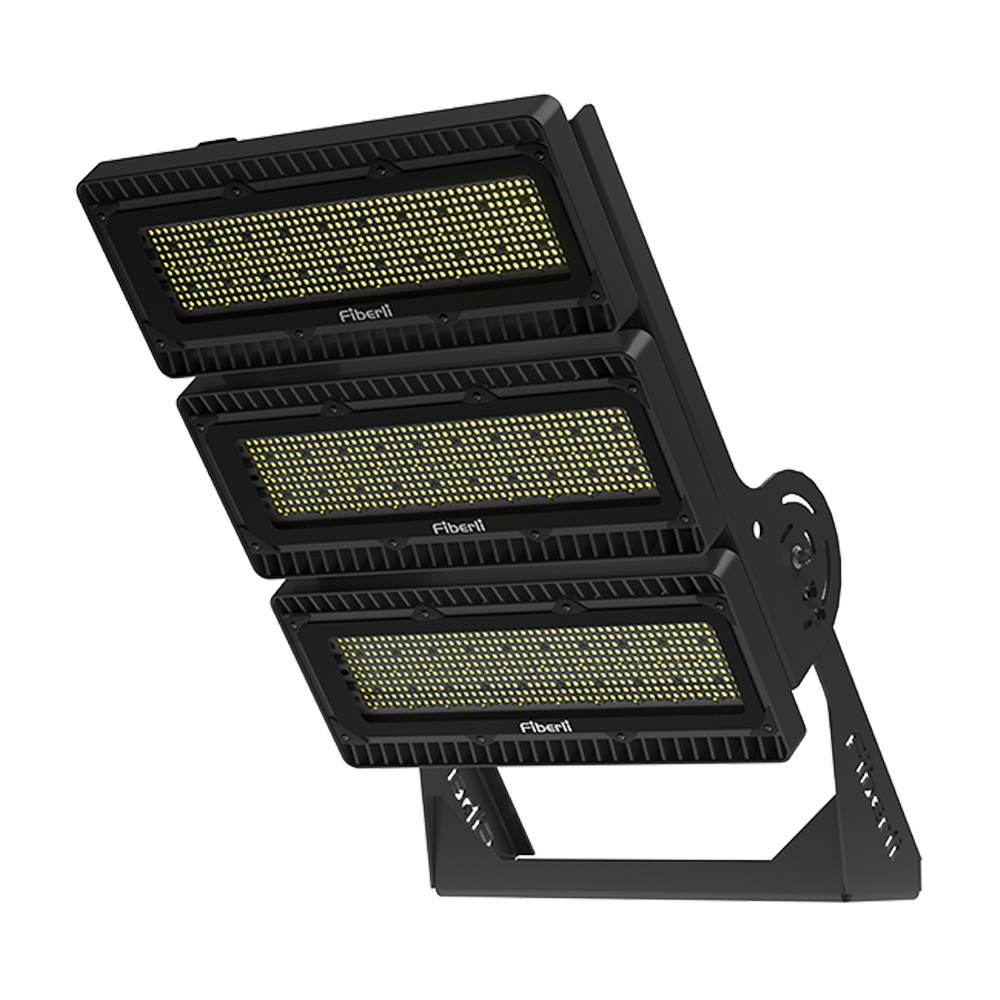

    SUPREME-III WW-NW-CW 220-240V AC 1320 171.600 43
    SUPREME-DMX RGBW 220-240V AC 300 - 23,5

    *Power and Lumen values provided are based off of a “natural white (NW) LED”.

    ELECTROMECHANICAL SPECIFICATIONS

    • High performance, delivers up to 172.000lm
    • Electrostatic powder coated aluminum injection housing
    • High efficient thermal design
    • 5mm tempered glass
    • Electrostatic painted DKP mounting feet
    • Stainless fittings and clips
    • +60°/-60° tilt angle
    • Secure connection with IP67 socket

  • C

    LIGHT COLOR OPTIONS

    WW:Warm White 3000K RGBW
    NW:Natural White 4000K
    CW:Cold White 6500K
  • S

    DRIVER OPTIONS

    • 01: Standart (ON/OFF)
    • 06: DALI Driver
  • O

    LENS OPTIONS

    • N: Narrow Angle
    • M: Medium Angle
    • W: Wide Angle
    • XW: Without lens
  • G

    HOUSING COLOR OPTIONS

    • RAL9005
    • RAL9016
    • RAL9007
    • RAL7016
  • ADDITIONAL PIECE OPTIONS

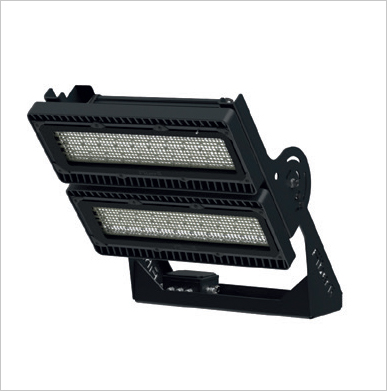

    • Dual assembly

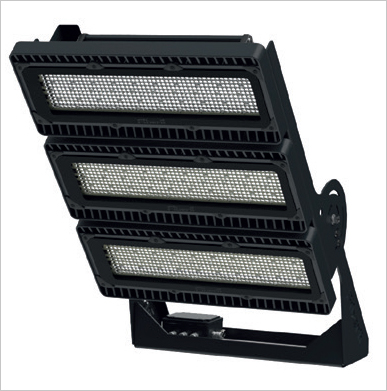

    • Triple assembly
  • CONTROL SYSTEM OPTIONS

    Color Type PWM INW PWM DMX DALI 0 - 10V DC TRIAC
    WW-NW-CW
    RGBW
  •  PRODUCT DIAGRAMS
    SUPREME SUPREME
  • a6.svg
  • a19.svg
  • a48.svg
  • c4.svg
  • c5.svg
  • c11.svg
  • c14.svg
  • c13.svg
  • b27.svg
  • b28.svg
  • b29.svg
  • b21.svg
  • b1.svg
