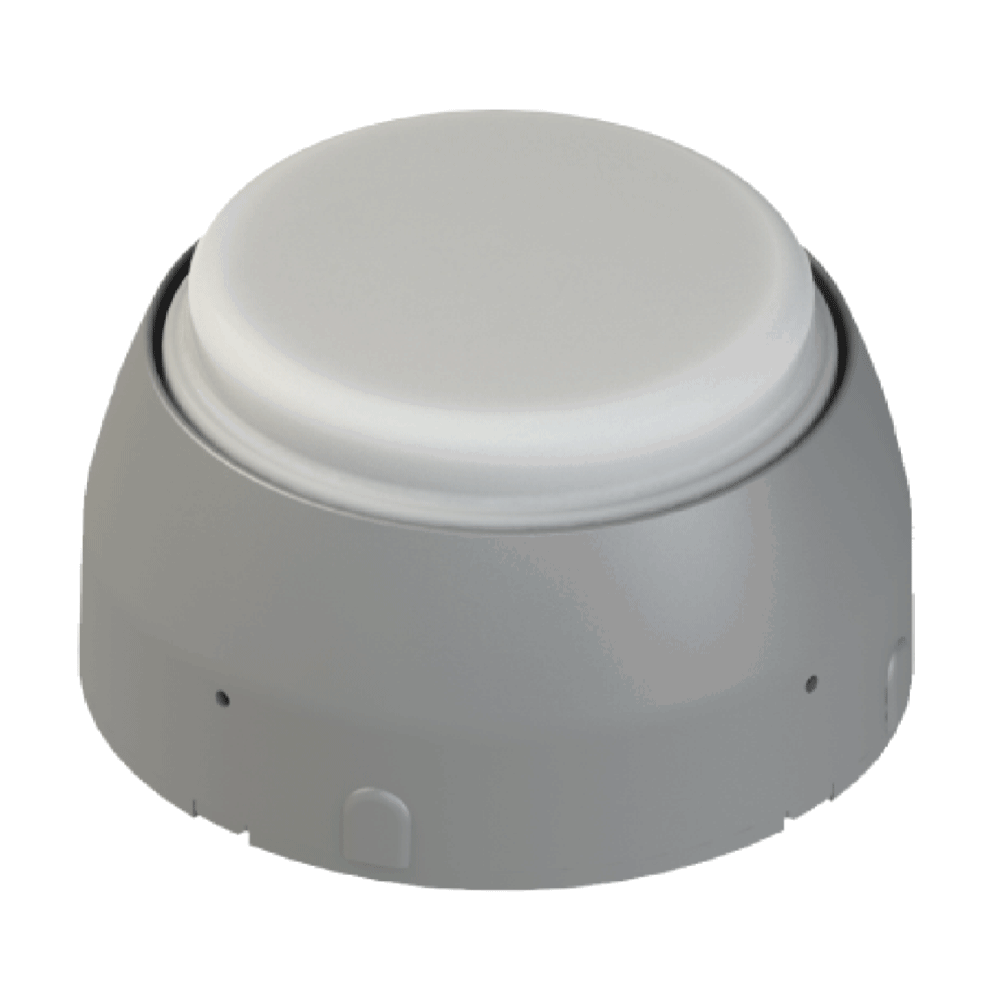

DOT RDMX

KAPAT

KAPAT

Pixel Controlled Products / DOT RDMX

P
W
G
U

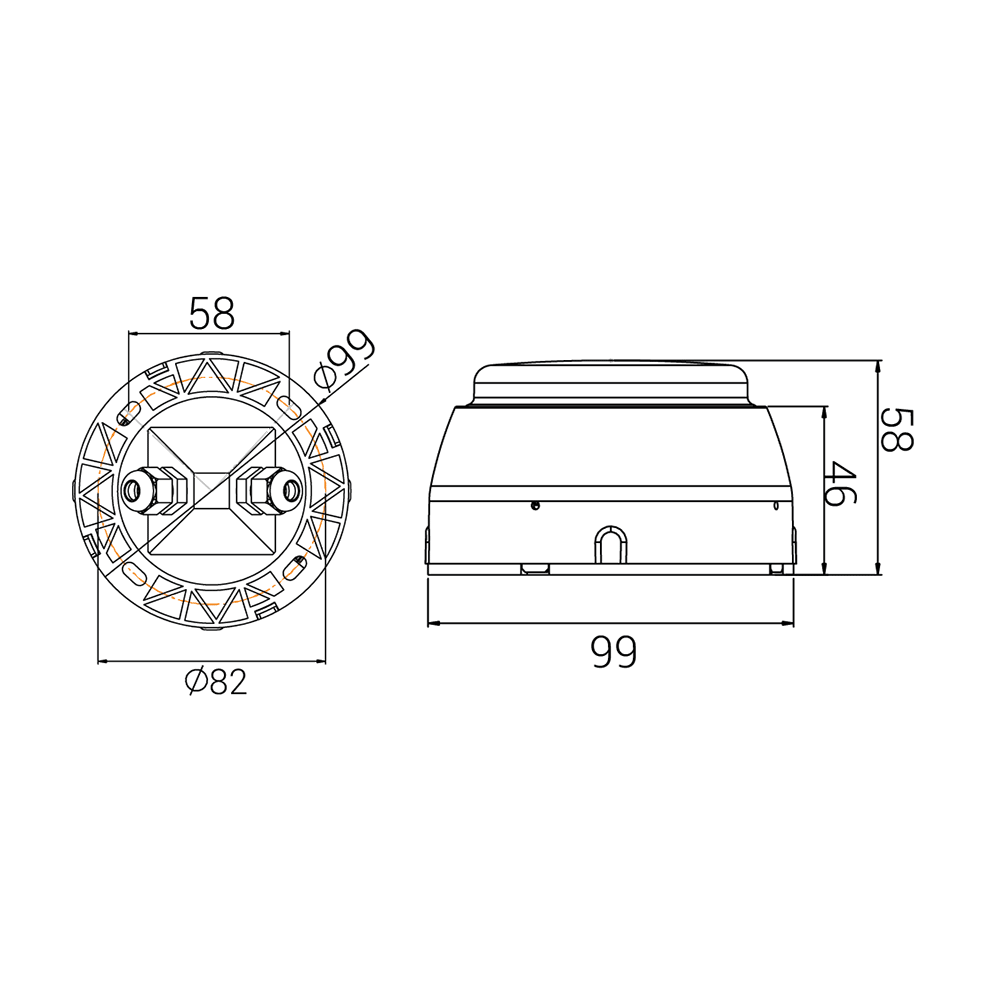

Technical Details

P

PRODUCT & POWER OPTIONS

Product Name	Light Color	Input Voltage (V)	Power (W)	Product Weight (kg)
DOT-RDMX-6	RGB	12-48V DC	2	0,2
DOT-RDMX-12	RGB	12-48V DC	3	0,2
DOT-RDMX-18	RGB	12-48V DC	5	0,2

ELECTROMECHANICAL SPECIFICATIONS

• Plastic injection body
• Polycarbonate luminaire glass
• RDM configuraion
• IP67 socket for DATA-SIGNALS

G
HOUSING COLOR OPTIONS
- RAL9005
- RAL9016
- RAL9007
U
UPPER PIECE OPTIONS
- 9: Difused
- 11: Transparent
- Standard Connection Scheme
- Connection Scheme with Extension Socket
- Combined Model Connection Scheme DOT-RDMX-xx and LL-RDMX-xxx can be grouped together by DOT/LL combined chain model
- (1) DMX DATA CABLE, 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
- (2) AC SUPPLY CABLE, 3x1mm TTR
- (3) 26000xxx : SOCKET RDMX L:100/200/400/600/800/1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
- (4) 33600695 :RDMX INPUT JUNCTION BOX
- (5) 33600696 : RDMX TERMINATOR
ACCESSORIES
- 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
  26000122 : SOCKET RDMX L:100cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000150 : SOCKET RDMX L:200cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000151 : SOCKET RDMX L:400cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000152 : SOCKET RDMX L:600cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000153 : SOCKET RDMX L:800cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000154 : SOCKET RDMX L:1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION
